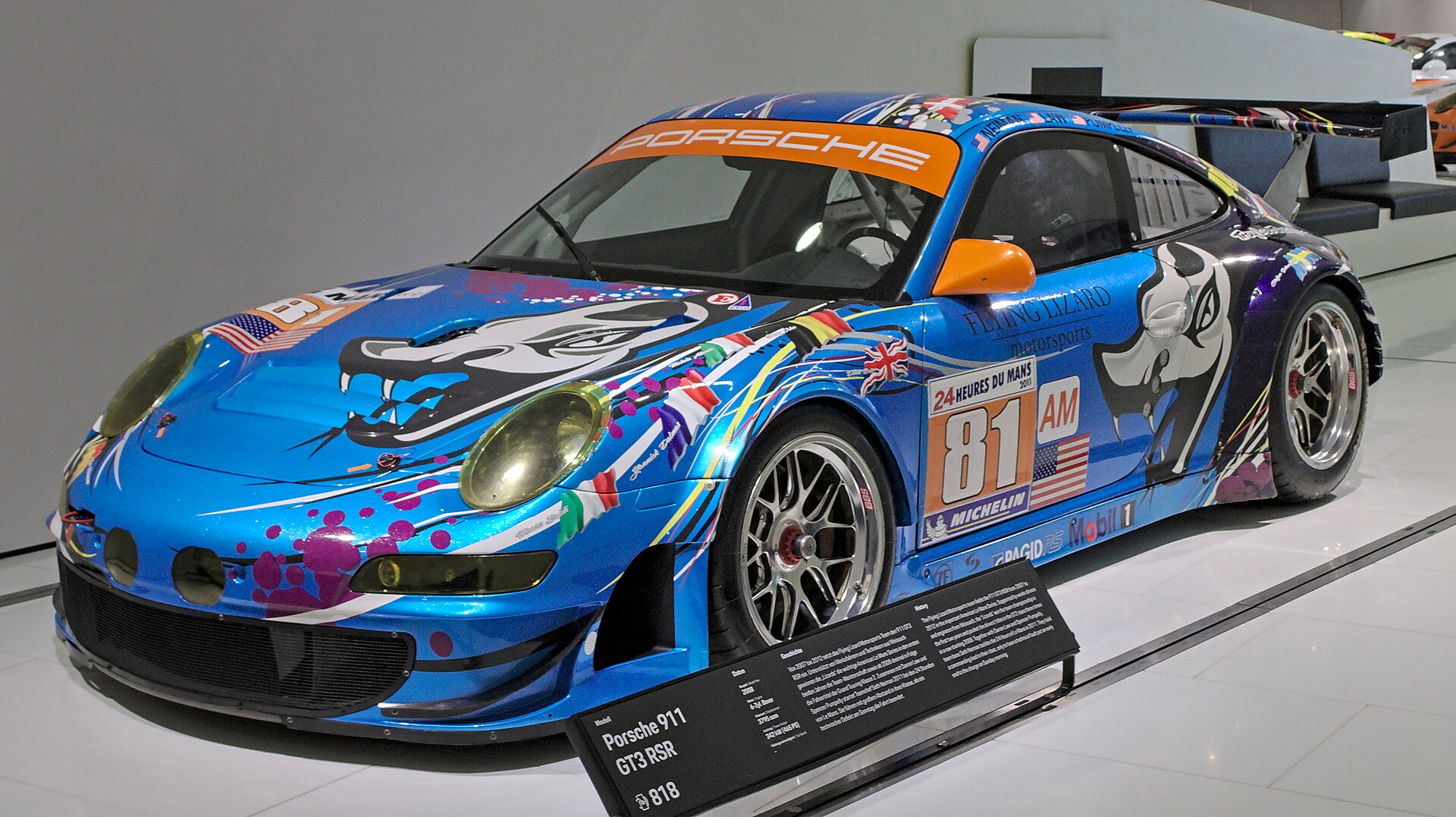

2009 Porsche 911 GT3 RSR image

2009 Porsche 911 GT3 RSR takes off into the new model year with extensive modifications. The most powerful race car based on the Porsche 911, which last season secured wins in the American Le Mans Series and at the Nürburgring 24 Hours, competes in the GT2 class in international long distance races. The most distinguishing feature of the new GT3 RSR is the re-designed nose with its large air outlets on the front panel. Furthermore, major changes were made to this quickest 911 beneath its light-weight bodyshell

The capacity of the well-known six-cylinder horizontally-opposed ‘boxer’ engine has been increased from 3.8 to 4.0-litres. After another reduction in the size of the air restrictors for the 2009 season (as mandated by governing body of world motor sport), the engine now delivers around 450 bhp (331 kW) at 7,800 rpm, and develops a maximum torque of 430 Nm at 7,250 rpm. The rev limiter of the efficient six-cylinder unit kicks in at 9,000 rpm. Compared to its forerunner, the rev level for a given power output has been significantly lowered. Thanks to this, the engine features an optimized torque curve, which results in better driveability.

In the cockpit, a new multi-function display located above the dashboard indicates the optimum time to change gears. Another new feature is the programmable multi-function, on-board supply system control device, giving teams the choice of many individual functions. One of these is the infinitely adjustable blinking frequency of the lights in the front apron, which helps to immediately recognise race cars when they enter the pits at night-time in long distance endurance events. For easier servicing under race conditions, other modifications were made. The GT3 RSR now features a new air-jack system with over-pressure valve. The oil re-fill with fast filling function has now moved to the rear lid, giving mechanics better access.

Aside from GT3 Cup and the GT3 Cup S, the GT3 RSR is the third race car based on the Porsche 911 offered by Porsche Motorsport. About 20 of the successful long distance racers have been built in Weissach and are now being delivered to customer teams around the world. The GT3 RSR costs 380,000 Euro plus VAT specific to each country.

2009 Porsche GT3 RSR Technical Description

Engine: Water-cooled, six-cylinder boxer engine; four valves per cylinder; dry sump lubrication; individual throttle butterflies; fuel injection; air restrictors 2 x 29.5 mm.

Bore: 102.7 mm

Stroke: 80.4 mm

Capacity: 3,996 cc

Power output: 331 kW (450 bhp) at 7,800 rpm

Max. Torque: 430 Nm at 7,250 rpm

Max. revs: 9,400 rpm

Transmission: Six-speed gearbox with sequential jaw-type shift; oil/water heat exchanger; single-mass flywheel; hydraulic disengagement lever; three-plate carbon-fibre clutch; rear wheel drive; limited-slip differential 45/65%

Body: Monocoque body (basis GT3 RS) of hot-galvanised steel; aerodynamically optimised front end with front spoiler; aerodynamically optimised front underfloor; adjustable rear wing; 90-litre safety fuel tank with fast filling function; air jack; welded-in safety cage; bucket-type racing seat (on driver’s side only) with flame-resistant seat cover; six-point seat belt adapted for use of the HANS Head and Neck Support; electric fire-extinguishing system.

Suspension: Front: McPherson spring strut axle; Sachs four-way gas pressure dampers; double coil springs (main and ancillary spring); front axle arms adjustable for camber; adjustable sword-type anti-roll bar on both sides; power steering.
Rear: Multi-arm axle with rigidly mounted axle sub-frame; Sachs four-way gas pressure dampers; double coil springs (main and auxiliary spring); rear axle tie-bar reinforced and infinitely adjustable; adjustable sword-type anti-roll bar on both sides. Complete suspension infinitely adjustable (height, camber, track).

Brakes: Brake system with balance bar control.
Front: Single-piece six-piston aluminium fixed callipers; inner-vented, 380 mm in diameter; racing brake pads.
Rear: Single-piece four-piston aluminium fixed callipers; inner-vented, 355 mm in diameter; racing brake pads.

Wheels: Front: Three-piece BBS light-alloy wheels (11J x 18-34); central bolt;
Rear: Three-piece BBS light-alloy wheels (13J x 18-12.5); central bolt.

Electrical System: Motec display with integrated data recording; multi-function display with integrated gearshift indicator; adjustable traction control; battery: 12 volt, 50 Ah, 140 Ah alternator.

Weight: Approx. 1,220 kg complying with A.C.O. regulations,1,245 kg complying with FIA regulations.
