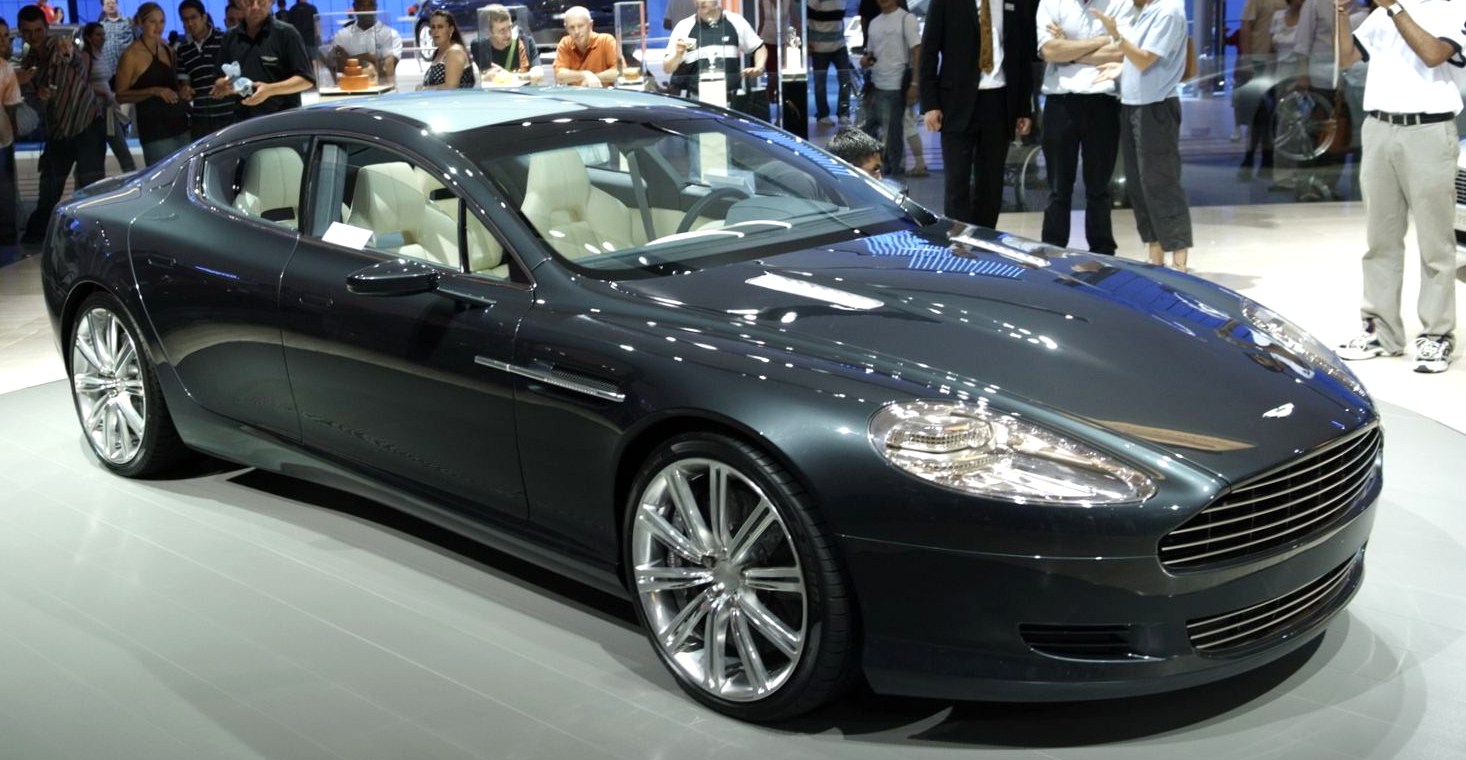

Aston Martin Rapide – one of the most elegant four-door sports car image

The elegant Aston Martin Rapide, functional yet luxurious, provides space for up to four adults combined with an engaging driving experience synonymous with all Aston Martins.

As the marque’s first production four-door sports car, Rapide encapsulates core values of Power, Beauty and Soul; four ‘swan wing’ doors provide access to cosseting sports seats both front and rear bestowing occupants with ample accommodation. A 301 litre luggage compartment affords generous space for belongings for all four passengers whether they be sports bags or indeed, sets of skis, creating an Aston Martin which can be enjoyed on any occasion, anytime, anywhere.

Rapide’s rear environment has been intelligently packaged to create a space where passengers feel a part of the driving experience with clear views to the front and sides. Comfort and support is supplied in the form of two hand trimmed individual seats and a personal face-level heating and air conditioning system. Aiding the practicalities of everyday use, the luggage compartment features a movable bulkhead to permit access from the rear cabin while the rear seats fold flat at the touch of a button to create a flat loading space increasing the luggage compartment from 301 litres to 750 litres.

At the heart of every Aston Martin lies an engine providing effortless power and torque: Rapide features a hand-built 6.0-litre V12 engine producing 470 bhp (477 PS / 350 kW) with peak power being delivered at 6000 rpm and 600 Nm (443 lbft) peak torque at 5000 rpm. A specifically tuned six-speed Touchtronic 2 automatic transmission features as standard, allowing the driver to change gear automatically or manually via the steering column-mounted magnesium paddles.

Aston Martin Rapide frontImage by Autoblog.nl via Flickr

First shown in 2006 in concept form at the Detroit Auto Show, the Rapide project received an immediate green light from Aston Martin’s new shareholders in mid 2007 following the sale of the marque by the Ford Motor Company. In a little over two years, Aston Martin’s design and engineering team have delivered a new car from the ground up. Rapide has been developed from the ‘V/H Architecture’ platform which already forms the backbone to Aston Martin’s critically acclaimed line-up: the DBS, DB9 and Vantage range.

Chief Executive, Dr. Ulrich Bez said: “Rapide is the culmination of the Aston Martin range of sports cars, a car that seals the revival of a truly admired marque. There is now an Aston Martin for every taste and for every use.

“With Rapide, the entire family can enjoy their Aston Martin together in unison, in an invigorating yet comfortable environment, sitting low, with plenty of visibility from every seat and with new levels of comfort, refinement and entertainment.”

Director of Design, Marek Reichman who led the in-house design team which penned the Rapide said: “Like a race horse standing still, you can see its power and elegance, the shape of Rapide’s rear haunches are muscular conveying the power that lies beneath while its low stance produces a powerful look.

“There is a real sense of proportion with this car, akin to a tailored suit; the new double grill gives more presence on the road while the iconic signature side strake has been lengthened through to the rear doors to enhance its lateral proportions in a subtle, yet elegant way. The car’s purity makes it look right from every angle.”

First deliveries of the Aston Martin Rapide will commence early in 2010 and will be available globally through Aston Martin’s 125 strong dealership network. Pricing will be confirmed at the Frankfurt Show.

Aston Martin Rapide: Specification

Body

Four door body style with 4 individual seats.
Extruded bonded aluminium VH body structure
Aluminium, magnesium alloy and composite body
Extruded aluminium door side impact beams
Single bi-xenon headlamps with integrated LED side lights and direction indicators
LED rear lamps and side repeaters

Engine

All alloy quad overhead cam 48 valve 5935cc V12
Front mid-mounted engine, rear-wheel drive
Fully catalysed stainless steel exhaust system with active bypass valves
Compression ratio 10.9:1

Max Power 350 kW (470 bhp / 477 PS) at 6000 rpm
Max Torque 600 Nm (443 lb ft) at 5000 rpm
Acceleration 0-60 mph in 5.1 seconds; 0-62 mph (0-100 km/h) in 5.3 seconds
Max Speed 188 mph (303 km/h) (predicted)

Transmission

Rear mid-mounted ‘Touchtronic 2′ six-speed gearbox with electronic shift-by-wire control system
Alloy torque tube with carbon fibre propeller shaft
Limited slip differential
Final Drive Ratio 3.46:1

Steering

Rack and pinion, Servotronic speed-sensitive power-assisted steering, 3.0 turns lock-to-lock
Column tilt and reach adjustment.

Wheels & tyres

20″ alloy wheels
Front Bridgestone Potenza 245/40 R20
Rear Bridgestone Potenza 295/35 R20

Suspension

Front Independent double wishbone incorporating anti-dive geometry, coil springs, anti-roll bar and monotube adaptive dampers
Rear Independent double wishbones with anti- squat and anti-lift geometry, coil springs, anti-roll bar and monotube adaptive dampers
Adaptive Damping System (ADS)

Brakes

Front Dual cast brake discs 390mm diameter with six piston calipers
Rear Dual cast brake discs 360mm diameter with four piston calipers
Dynamic Stability Control (DSC)
Anti-lock braking system (ABS)
Electronic Brakeforce Distribution (EBD)
Emergency Brake Assist (EBA)
Traction Control
Hydraulic Brake Assist (HBA)
Positive Torque Control (PTC)
Electronic Park Brake (EPB)

Dimensions

Length 5019 mm (197.6″)
Width (including mirrors) 2140 mm (84.3″)
Height 1360 mm (53.5″)
Fuel Capacity 90.5 litres
Kerb Weight 1950 kg (target) (4299 lb)

Interior

Full grain leather interior
Walnut facia trim
Iridium Silver centre console outer finish and Graphite inner finish
Auto-dimming interior rear-view mirror
Auto-dimming interior rear-view mirror with garage door opener (USA and Canada only)1
Electrically operated front seats
Memory front seats and exterior mirrors (three positions)
Dual stage driver and passenger front airbags
Front occupant side airbags
Head protection airbags for front and rear occupants
Heated front and rear seats
Heated rear screen
Automatic front and rear temperature control
Organic Electroluminescent (OEL) displays
LED map lamps and ambient lighting
Trip computer
Cruise control
Hard Disk Drive (HDD) satellite navigation system1,2
Bluetooth telephone preparation1
Satellite radio system (USA only)
Powerfold exterior mirrors
Front and rear parking sensors
Tyre pressure monitoring1
Alarm and immobiliser
Remote-control central door locking and boot release
Battery conditioner
Tracking device (UK only)3
Boot mounted umbrella

In Car Entertainment

1000 W Bang & Olufsen BeoSound audio system with ICEpower® technology
Integrated Apple iPod® connector4
USB connector with Waveform Audio Format (WAF), Windows Media Player (WMA) and MPEG (MP3) audio file compatibility
3.5 mm auxiliary input socket

Options

Cooled front and rear seats
Twin screen rear seat entertainment system with 6-disc DVD player, auxiliary input, wireless headphones and remote control
Alternative facia trim finishes – Mahogany, Piano Black, Bamboo, Tamo Ash, Birds Eye Maple, Olive Ash Burl, Double Apex Alloy
Matching wood door trim
Colour-keyed steering wheel
Second glass key
Magnum silver rear lamp infills
Delete model badging
Delete protective tape
20″ alloy wheels with graphite finish
20″ alloy wheels with polished finish
Alternative brake calliper finish – black, red, silver
Personalised sill plaques
Auto dimming interior rear view mirror with garage door opener (Europe only)
Alarm upgrade (volumetric and tilt sensor)
Tracking device1,3
First aid kit
Ashtray and Cigar Lighter

1 Not available in all markets
2 Includes Traffic Messaging Channel (TMC) in Continental Europe
3 Complies with UK Thatcham Category 5 requirements. Excludes subscription. Standard in UK
4 iPod® is a trademark of Apple Inc., registered in the US and other countries
